Variogate® 26

Suitable for loads as follows

  • Height: 2.600 mm
  • Choice of Widths: 1.200, 1.600, 2.000 and 2.600 mm*
  • Depth: 1.500 mm

Installation space dimensions

  • Height: 2.900 mm
  • Width: 1.600, 2.000, 2.400 and 3.000 mm
  • Depth:
    Fixed supports: 900 mm
    Pivoting component: 1.785 mm
  • Turning radius: 2.440 mm (measured from the floor edge)

* These widths take into account space needed to manoeuvre on both sides.

Standard Colour, yellow, RAL 1028. The Variogate 26 is TüV certified

Let us help you choose the right solution for your situation!

Quotation Request

Description

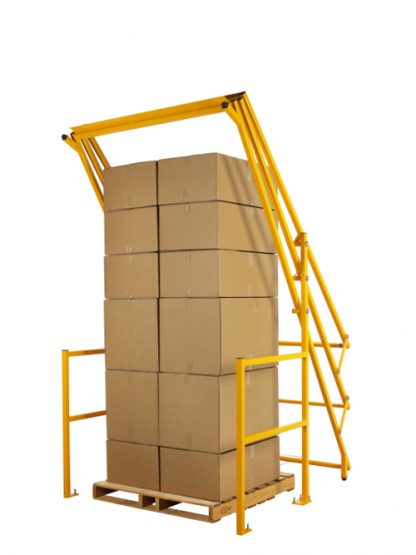

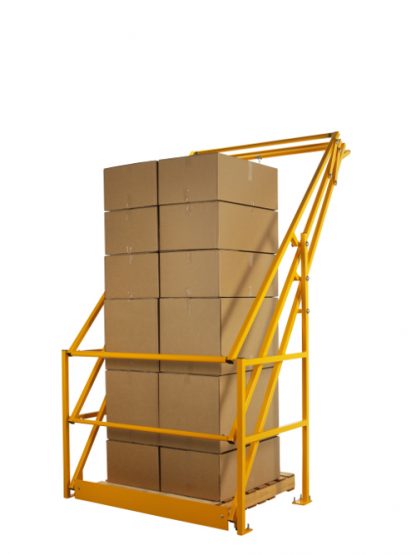

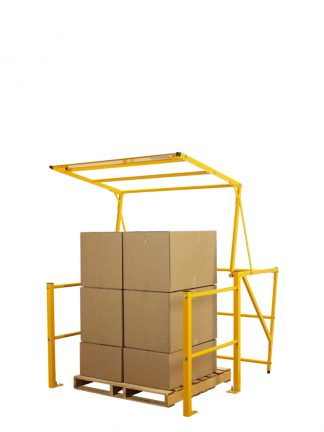

The VARIOGATE® 26 Cantilever model: the moveable parts of this gate turn over the goods. It is the best solution for application in situations for relatively high loads under an available ceiling height.

Characteristic of the VARIOGATE® serie 26 is their compact construction.
They require a minimum amount of space so no valuable storage and/or working space is lost.
The connection between the separate components is Standard solutions ingenious, making them easy to operate. The device is shock-resistant and is very durable, even in heavy use.



Additional information

Available width

1600 mm, 2000 mm, 2400 mm, 3000 mm

Available height

2650 mm, 2900 mm, 3040 mm, 3275 mm

Available depth

2430 mm, 3477 mm

Pallet width

1200 mm, 1600 mm, 2000 mm, 2600 mm

Pallet depth

1200 mm, 1300 mm, 1400 mm

Pallet height

1600 mm, 1800 mm, 2000 mm, 2200 mm

Direction of transportation

straight ahead

Type of material

Other RAL color or material, Powder coating RAL 1028, RVS 304

Method of transportation

Forklift or similar

Certification

TÜV Certification Variogate 26:

This product has undergone rigorous testing and certification by TÜV, ensuring the highest standards of quality and safety. With the TÜV seal of approval, you can trust in the reliability and performance of our product.
