Variogate® 22

Suitable for loads as follows

  • Height: 2.200 mm
  • Choice of Widths: 1.200, 1.600, 2.000 and 2.600 mm*
  • Depth: 1.300 mm

Installation space dimensions

  • Height: 2.528 mm
  • Width: 1.600, 2.000, 2.400 and 3.000 mm
  • Depth:
    Fixed supports:                  855 mm
    Pivoting component:        1.679 mm
  • Turning radius: 2.218 mm (measured from the floor edge)

* These widths take into account space needed to manoeuvre on both sides.

Standard Colour, yellow, RAL 1028.
The VARIOGATE® 22 has a TUV-Type-approval.

Let us help you choose the right solution for your situation!

Quotation request

SKU: N/A Categories: , ,

Description

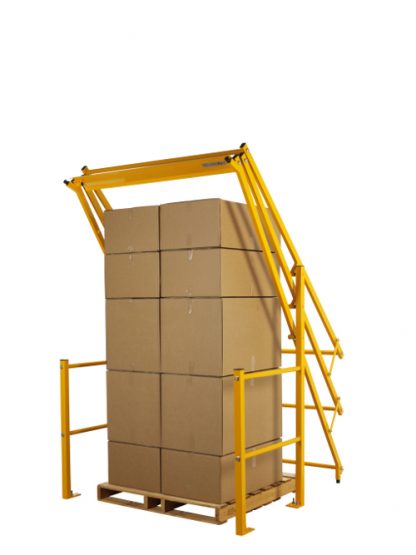

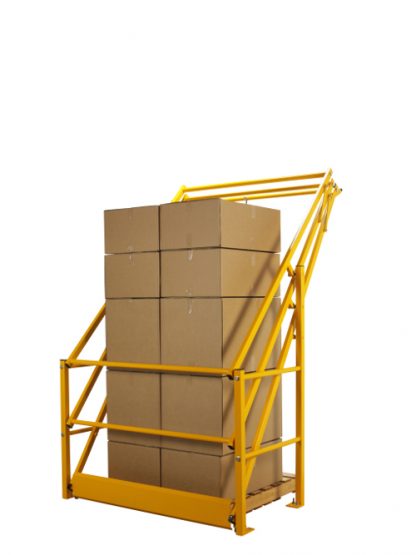

The VARIOGATE® 22 Cantilever model: the moveable parts of this gate turn over the goods. It is the best solution for application in situations for relatively high loads under an available ceiling height.

Characteristic of the VARIOGATE® serie 22 is their compact construction.
They require a minimum amount of space so no valuable storage and/or working space is lost.
The connection between the separate components is Standard solutions ingenious, making them easy to operate. The device is shock-resistant and is very durable, even in heavy use.



Additional information

Available width

, , ,

Available height

, , , , ,

Available depth

, , ,

Pallet width

, , ,

Pallet depth

,

Pallet height

, , ,

Richting van transport

Type of material

Method of transportation

Certification

TÜV Certification Variogate 22:

This product has undergone rigorous testing and certification by TÜV, ensuring the highest standards of quality and safety. With the TÜV seal of approval, you can trust in the reliability and performance of our product.
