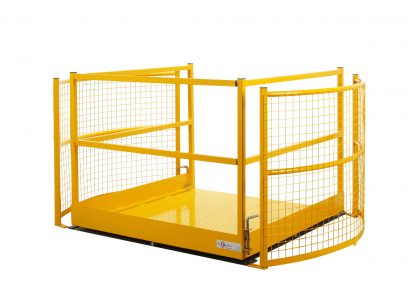

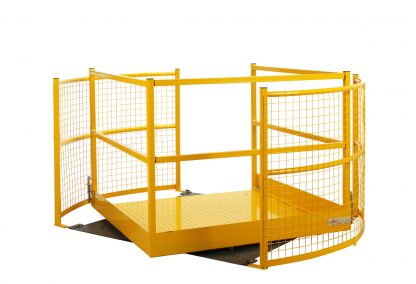

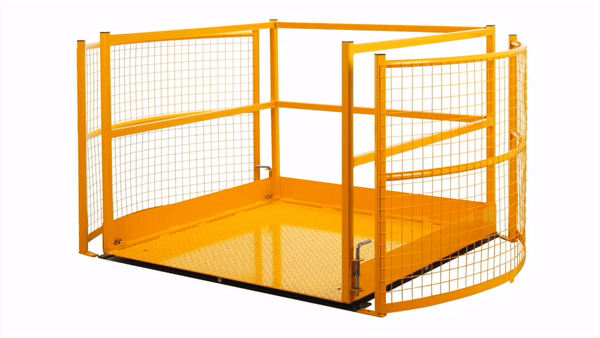

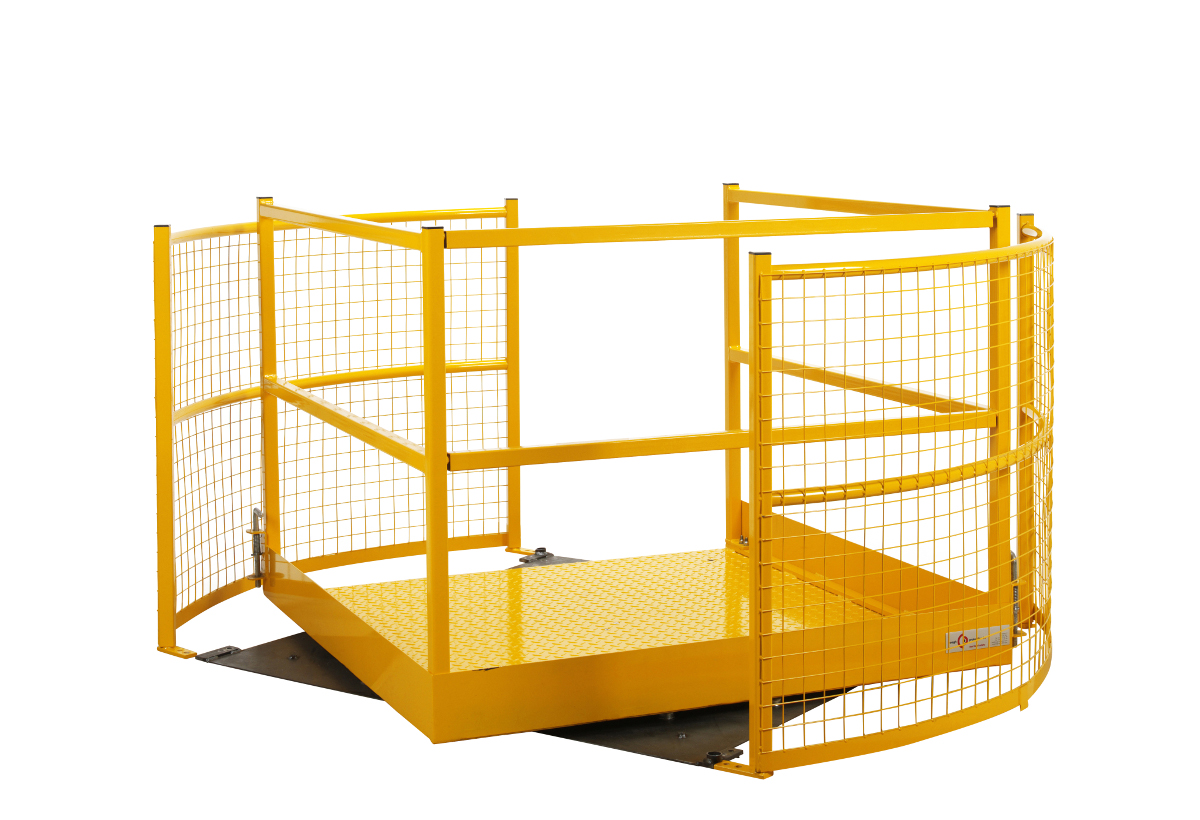

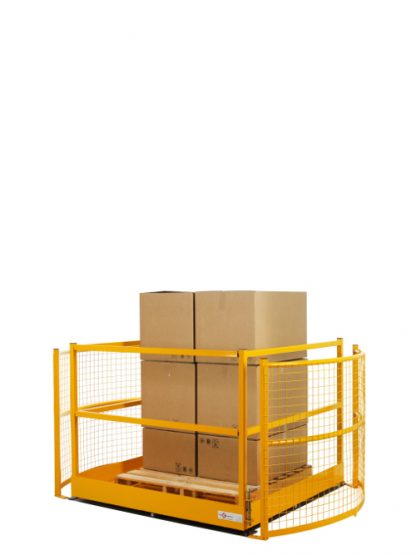

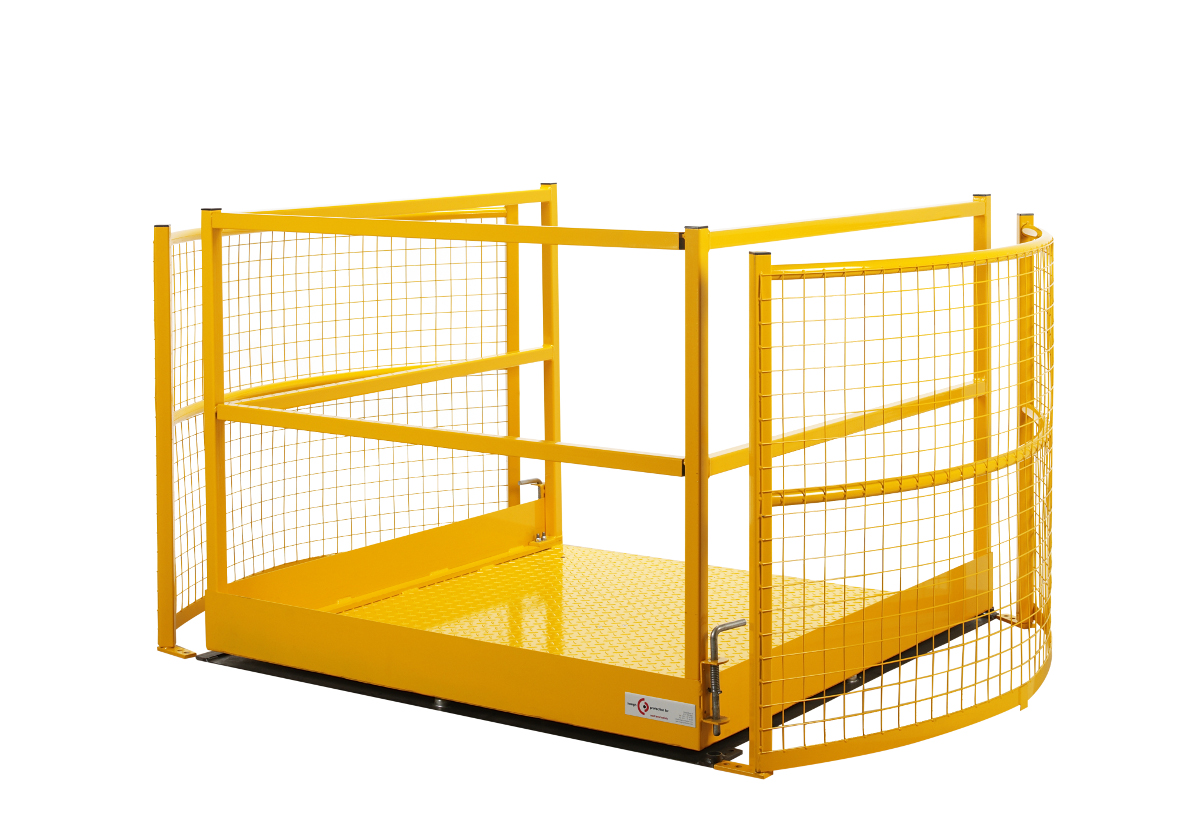

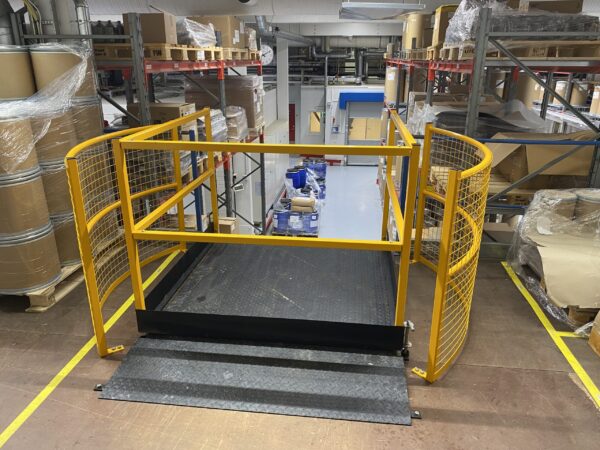

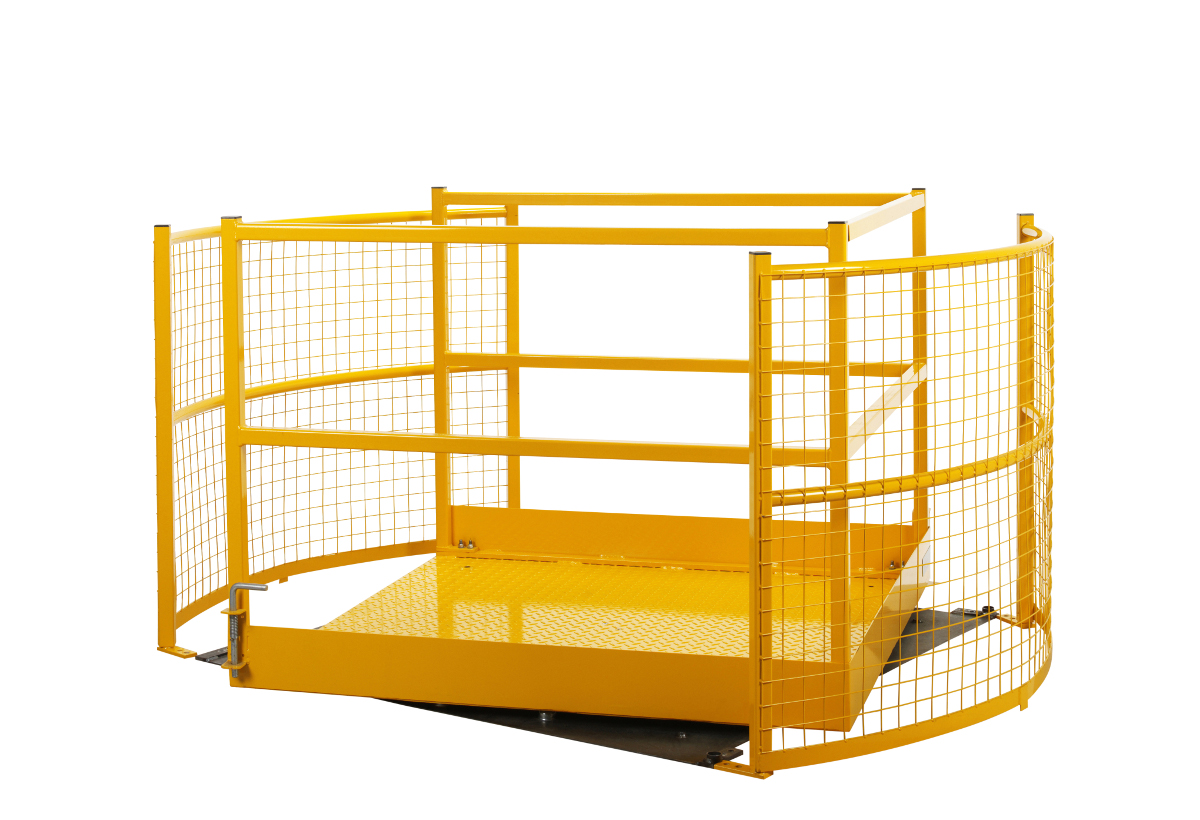

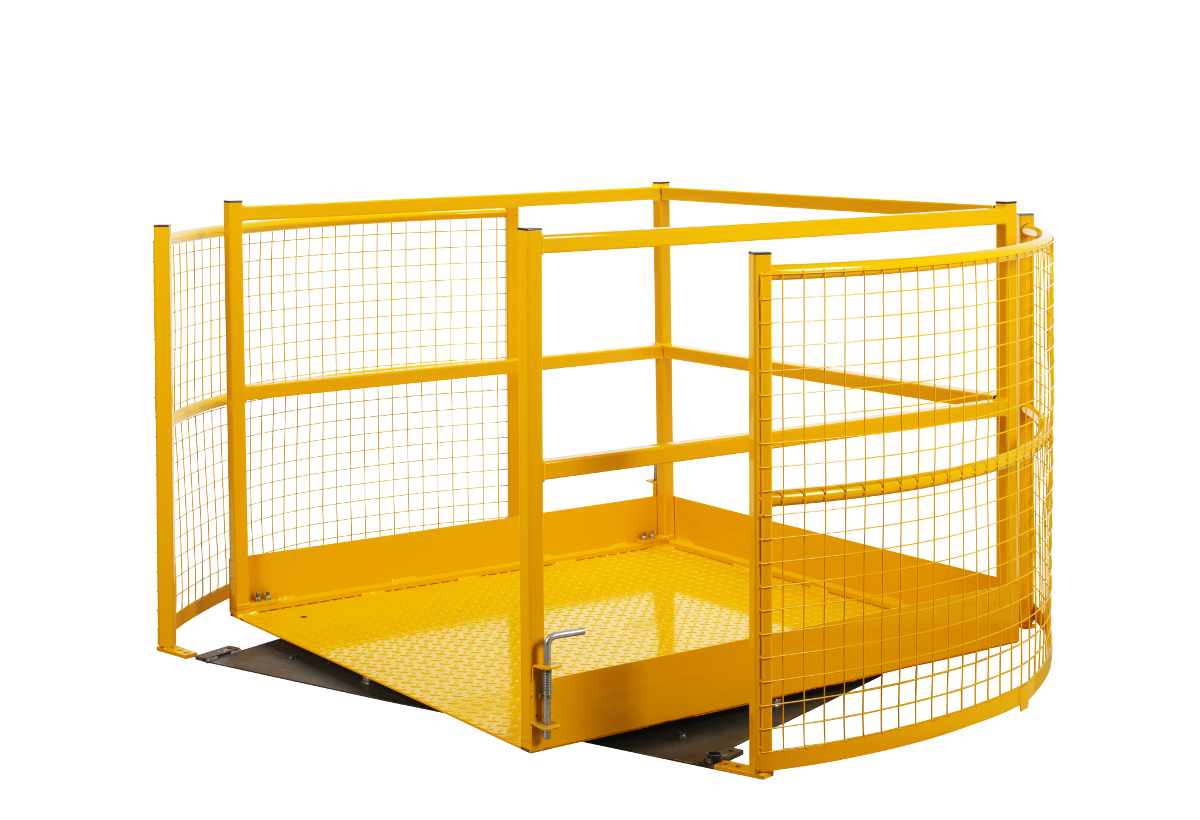

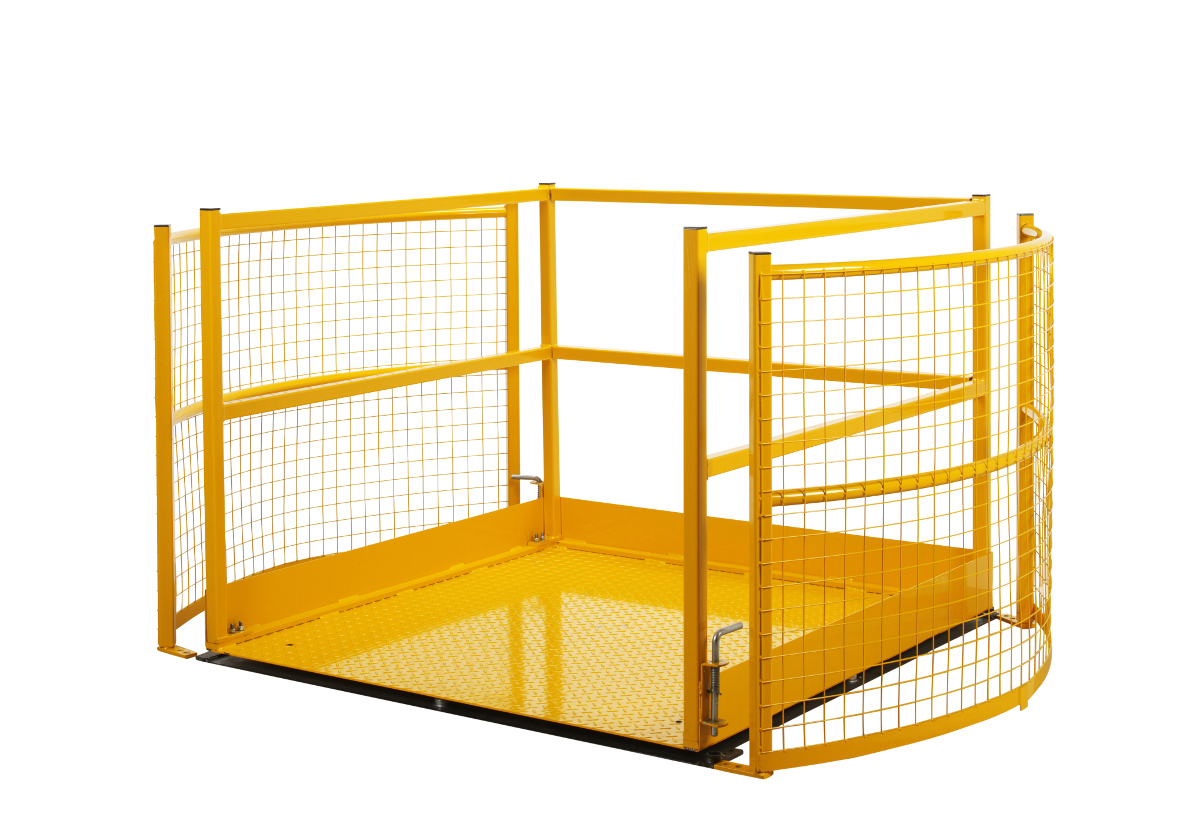

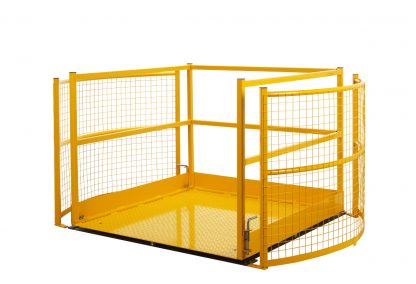

Rotating Variogate® 360

Suitable for loads as follows

  • Width: 1.300 mm*
  • Depth: 1.400 mm

Installation space dimensions

  • Height: 1.150 mm
  • Width: 2.351 mm
  • Turning circle: 2.121 mm

* These widths take into account space needed to manoeuvre on both sides.

Let us help you choose the right solution for your situation!

Quotation Request

Description

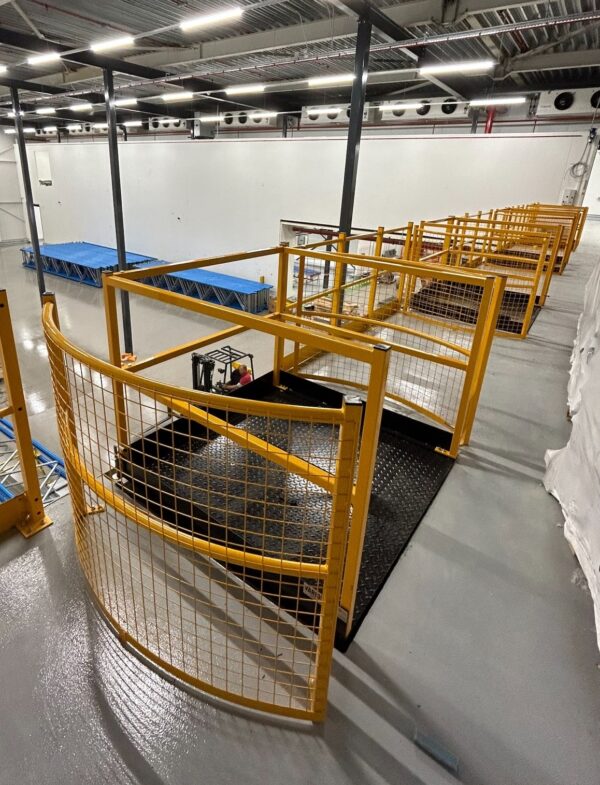

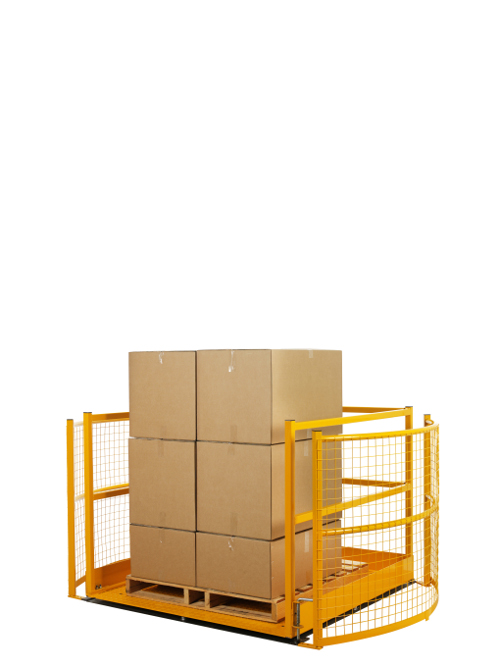

The VARIOGATE® 360 models offer a solution in situations where the space behind the loading opening area is limited, unloading is done with a hoist and/or a lot of height is required for loading. VARIOGATE® rotating models are suitable for areas there are no height restrictions and for loads weighing up to approx. 1.500 kg. (Delivery includes a metal loading ramp.)





Additional information

Available width

2400 mm, 3000 mm

Available depth

1700 mm, 1963 mm, 2218 mm, 2250 mm, 2430 mm, 3477 mm

Available height

1150 mm, 2089 mm, 2150 mm, 2528 mm, 2650 mm, 2890 mm, 2900 mm, 3040 mm, 3275 mm

Pallet width

1200 mm

Pallet depth

1200 mm, 1300 mm, 1400 mm

Pallet height

1600 mm, 1800 mm, 2000 mm, 2200 mm, 2400 mm, 2600 mm, Custom, Higher than

Direction of transportation

straight ahead

Type of material

Powder coating RAL 1028

Method of transportation

Forklift or similar, Overhead crane or similar
